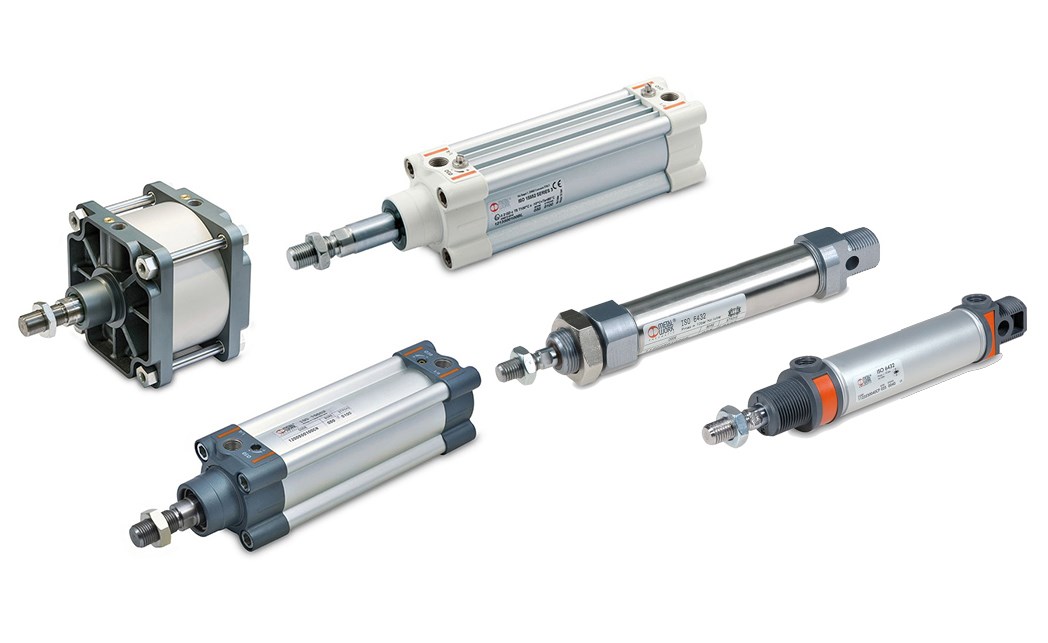

Standard ISO 15552 and ISO 6432 cylinders
Aluminum cylinder body and C45 steel or stainless-steel piston rod.
Versions with or without a magnet.
Double and single acting.
Temperatures from -35 to +150 degrees depending on the gasket solution.
HCR edition from Ø32. (High corrosion resistance) for food, pharmaceuticals and other corrosive environments.
Wide range of position sensors, switches, guides, hinges and brackets for mounting and steering.
Available with protective bellow for piston rod and head gasket.
Stainless steel ISO cylinders
ISO 6432 and 15552 cylinders in AISI304 and AISI316 materials.
Available in Polyurethane and Viton gaskets, the latter of which has temperature range from -10 to + 150 degrees.
Accessories available in stainless steel materials
Compact pneumatic cylinder
ISO 21287 cylinder series LINER. Ø20-Ø100. For strokes see catalogue.
Series CMPC with ISO 15552 or UNITOP mounting
See catalogue for diameter and stroke lengths.
Rod less cylinders
Cylinders with guide belts from Ø16 to Ø63, and stroke length from 100-5700 mm.
They come in a variety of types to meet application requirements.
Cylinders with magnetic slide
From Ø16 to Ø25 and stroke length from 10-1000mm.
Wide range of electrically powered cylinders and actuators.
ISO 15552 and round cylinder design, axes and gantry solutions, as well as electric version of rod less cylinder.
These can be supplied complete with E-motion programmable controls and drivers for stepper and brushless motors.
